Excel Spring & Stamping metal stamping service provides our customers with the highest quality components that are guaranteed to meet all requirements and standards. Serving industries such as lawn and garden, lighting, hand and power tools, automotive, aviation, and medical, we understand the importance of meeting the needs of our customers with exceptional products and customer service. We are a full-service stamping facility and maintain all dies in-house as well as the design and fabrication of all necessary tooling.

We work with a wide range of metals, and can produce small to medium sized stamped components using progressive dies, compound dies, cutting dies, or bending and forming dies, with automatic feed or single stroke operation. The dies can perform operations such as blanking, forming, coining, embossment, in-die thread tapping, and in-die assembly. Our stamping equipment consists of mechanical and servo powered OBS presses with ratings of 35 to 200 tons. Production speeds can reach 7,000 strokes/hour. Our maximum press stroke is 5.12″, maximum bed length is 49″, and maximum bed width is 30″. We can produce parts with material thickness up to .250″ and tolerances as tight as ±.001″. Our expertise ensures that each part meets quality requirements with complete testing, inspection, and certification as required.

For additional information about Excel Spring & Stamping, Inc. metal stamping service, please see the table below or contact us today.

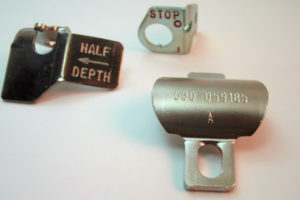

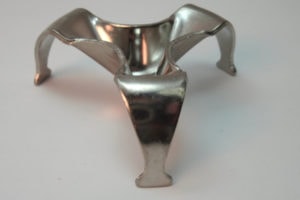

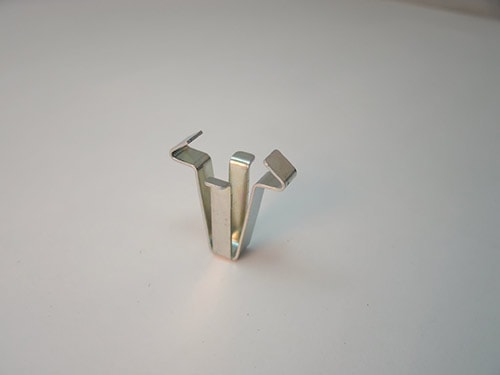

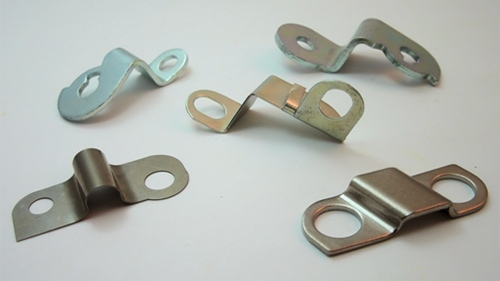

PRECISION STAMPING PROJECTS

Metal Stamping Capabilities

Production Method

Punch Press

Production Capabilities

Small to Medium Sized Components
Progressive Die
Compound Die
Cutting Die

Bending and Forming Die
Automatic Feed
Single Stroke

Stamping Features

Blanking
Forming
Coining

Embossing
In-Die Thread Tapping
In-Die Assembly

Equipment Features

Mechanical and Servo Powered OBS Presses

Press Rating

35 to 200 tons

Press Speed

Up to 7,000 strokes/hour

Maximum Press Stroke

5.12 in

Maximum Press Bed Length

49 in

Maximum Press Bed Width

30 in

Materials

Low Carbon Steel
High Strength Low Alloy (HSLA) Steel
High Carbon Steel
Stainless Steel
Flapper Valve Steel
Aluminum
Brass

Phosphor Bronze
Beryllium Copper
Monel and Inconel
Copper Alloys
Nickel Alloys
Plain or Pre-Plated Finish
Tempers from Dead Soft to Extra Spring

Material Thickness

Up to .250 in

Tolerance (+/-)

.001 in

Inspection

OGP Video Measuring System
Profile Projector

Calipers
Micrometers

Testing

Force
Hardness

Quality

Visual SPC
PPAP
FMEA

Documentation

Process Flow Diagram
Capability Charts
Material Certifications

Additional Services Provided

Deburring
Stress Relieving
Heat Treating
Plating
Powder Coating
Painting
Passivating
Assembly
Riveting
Crimping

Swedging
Welding
Secondary Forming Operations
Wire EDM
Flapper Valve Finishing
Special Packaging
Bar Coding
Complete In House Tool Room
Part Design Engineering Assistance

Production Volume

Prototypes to High Volume Production
Weekly Status Reporting
Up-To-Date Production Scheduling

Stocking Programs
Blanket Orders

Additional Information

Industry Focus

Lawn & Garden
Lighting
Appliances
Hand Tool
Power Tools
Automotive
Aviation

Medical
Pumps
Compressors
Firearms
Vending / Kiosk
Railroad
Telecommunications

Product Examples

Brackets
Plates & Shields
Clamps
Flat Springs
Electrical Connectors
Clips & Fasteners

Flapper Valves
Retainers
Terminals
Assemblies
Sub-Assemblies

Industry Standards

ISO 9001:2008 Certified
ASTM
REACH
RoHS
DFARS
Tooling and Manufacturing Association (TMA)

Transparent disclosure of environmental information
CMRT
EPA regulations
SVHC

File Formats

AUTODESK Inventor
AutoCAD
.DWG
.DXF
.IGS
.PRT

.STP
Catia
SolidWorks
.PDF
Graphic Files (.BMP, .JPG, .TIF, etc…)
