Our four-slide capabilities allow us to produce stamped and formed parts with more complexity than can be obtained from a stamping press. The four-slide machine allows forming from four or more different directions around a custom center-form. They are also well suited to high volume wire forms, since all the forming is done almost simultaneously. We work with flat stock, round wire, or shaped wire, and with metals such as low and high carbon steel, stainless steel, aluminum, brass, phosphor bronze, beryllium copper, and many other alloys. The materials can be hard or soft temper and can have a pre-plated or bare finish.

We are capable of working with material with thickness up to .125″, width up to 2.125″, or wire diameter up to .312″. Feed lengths can be up to 30″. We work to tolerances as tight as ±.001″. Completed components are inspected with our OGP video measuring systems, a profile projector, calipers, or a micrometer. We can also test spring force and hardness.

With 50 years of experience in manufacturing high-quality industrial metal components, Excel Spring & Stamping can meet your most demanding requirements. Our dedicated and skilled employees will exceed your expectations for service and reliability. Please contact us today to learn more about our four-slide expertise or refer to the table below for additional details.



Four Slide Stamping Capabilities

Production Method

Four Slide
Continuous Reel Production

Machine Capabilities

Complex Forming
Stamping
Chamfering
Coining

Embossing
Cold Heading
In-Die Assembly

Materials

Flat Stock
Round Wire
Shaped Wire
Low Carbon Steel
High Carbon Steel
Stainless Steel
Aluminum
Brass

Phosphor Bronze
Beryllium Copper
Monel and Inconel
Copper Alloys
Nickel Alloys
Plain or Pre-Plated Finish
Tempers from Dead Soft to Extra Spring

Flat Stock Thickness

Up to .125 in

Flat Stock Width

Up to 2.125 in

Wire Diameter

Up to .312 in

Feed Length

Up to 30 in

Tolerance (+/-)

.001 in

Inspection

OGP Video Measuring System
Profile Projector

Calipers
Micrometers

Testing

Force
Hardness

Quality

Visual SPC
PPAP

FMEA

Documentation

Process Flow Diagrams
Capability Charts

Material and Process Certifications

Additional Services Provided

Deburring
Stress Relieving
Heat Treating
Plating
Powder Coating
Painting
Passivating
Assembly
Riveting
Crimping

Swedging
Welding
Secondary Forming Operations
Wire EDM
Flapper Valve Finishing
Special Packaging
Bar Coding
Complete In House Tool Room
Part Design Engineering Assistance

Production Volume

Prototypes to High Volume Production
Weekly Status Reporting
Up-To-Date Production Scheduling

Stocking Programs
Blanket Orders

Additional Information

Industry Focus

Lawn & Garden
Lighting
Appliances
Hand Tool
Power Tools
Automotive
Aviation

Medical
Pumps
Compressors
Firearms
Vending / Kiosk
Railroad
Telecommunications

Product Examples

Flat Springs

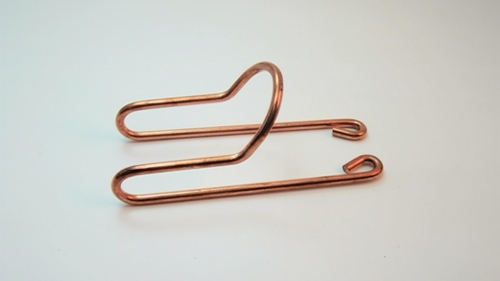

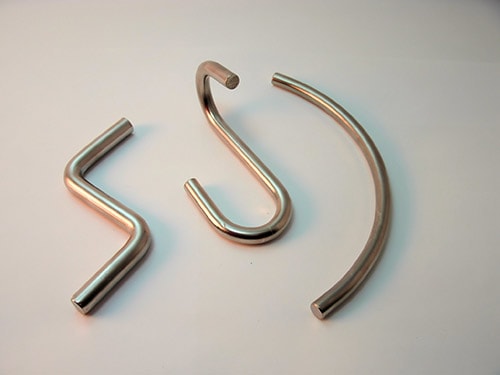

Wire Forms
Electrical Connectors

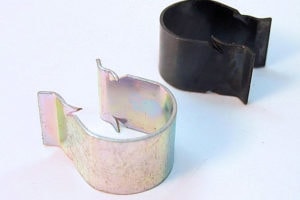

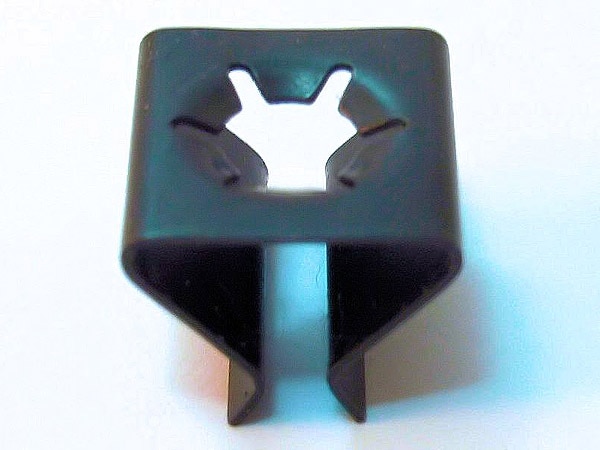

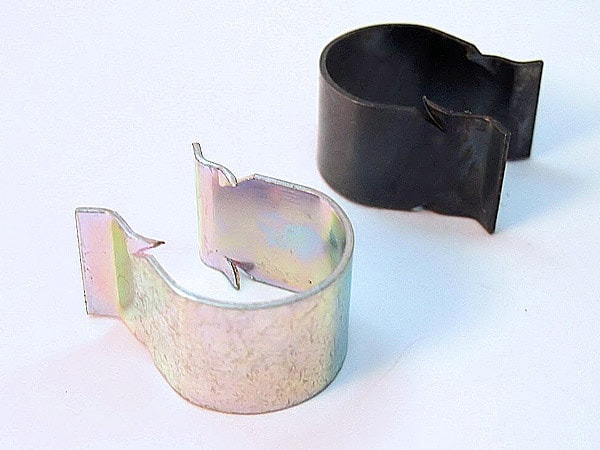

Clips & Fasteners
Rings
Bands
Hooks
Hangers
Brackets

Brush Sleeves
Bushings

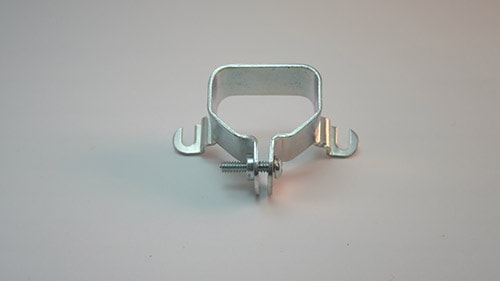

Clamps
Retainers
Terminals
Assemblies
Sub-Assemblies

Industry Standards

ISO 9001:2015 Certified
ASTM
REACH
RoHS
DFARS
Tooling and Manufacturing Association (TMA)

Transparent disclosure of environmental information
CMRT
EPA regulations
SVHC

File Formats

Autodesk Inventor
Autodesk AutoCAD
SolidWorks
.DWG
.DXF
.IGS

.PRT
.STP
Catia
.PDF
Graphic Files (.BMP, .JPG, .TIF, etc…)
